PowerTraxx RT15

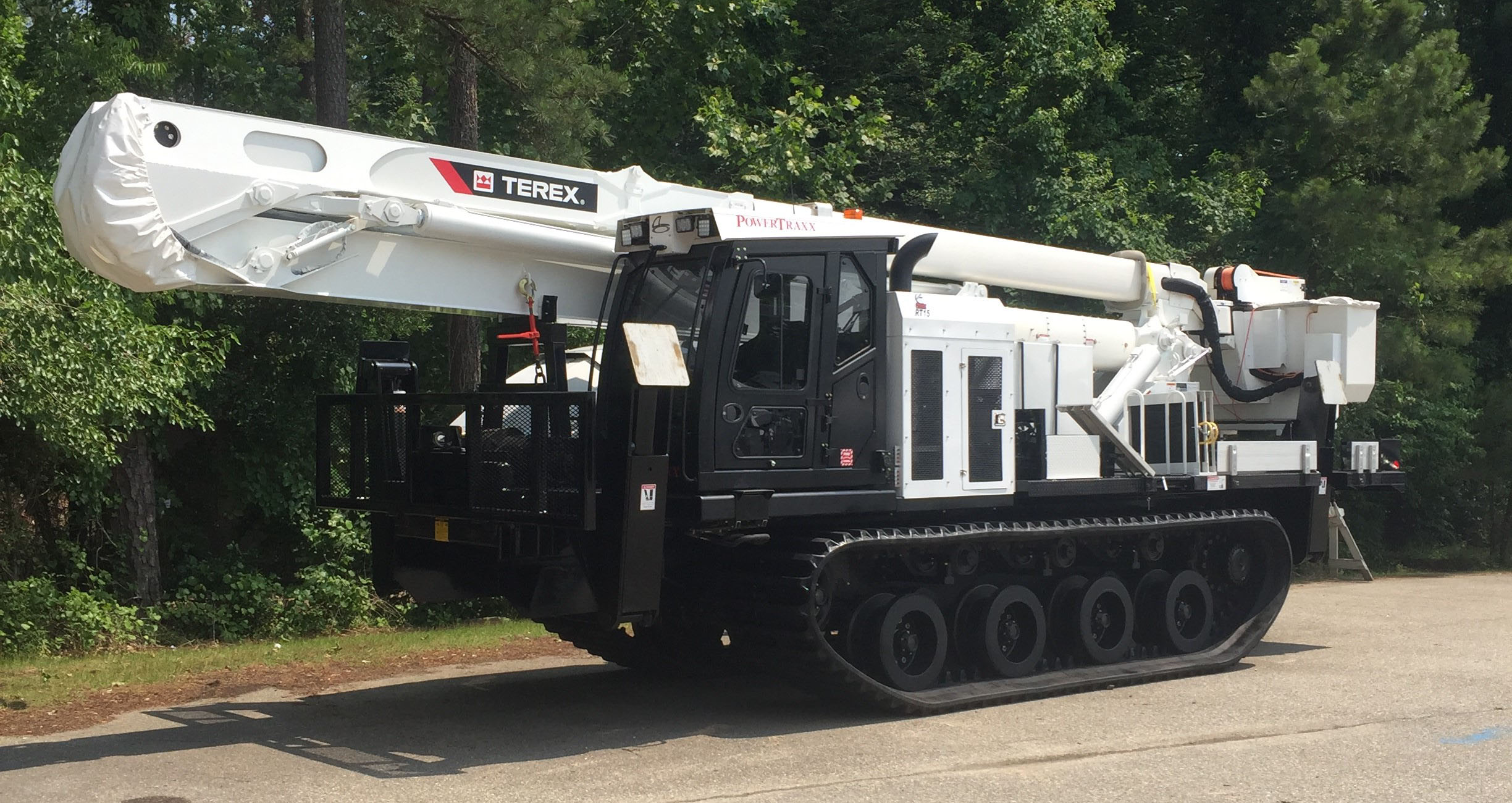

PowerTraxx RT15 is the perfect application for mounting large equipment and aerial devices for use on asphalt and other sensitive terrain. Its elongated and extra-wide frame is heavily reinforced, giving it increased stability and a minimum payload capacity of 40,000 lbs. Enabling this size payload capacity is a combination of heavy duty arched solid steel walking beams, cast sprocket segments, idler wheels and load wheels, and heavy duty steel hubs and spindles. A 275 hp Cummins® engine, along with hydrostatic drive system, makes for a smooth ride over 33.5" continuous rubber tracks.

Download Spec Sheet

Technical specifications

  • Overall Length
  • Overall Width
  • Overall Height
  • Ground Clearance
  • 326"
  • 125"
  • 120"
  • 20"
  • Basic Vehicle Weight
  • Payload Capacity
  • Gross Vehicle Weight
  • Ground Pressure - Unloaded
  • Ground Pressure - Loaded
  • 36,500 lbs.
  • 40,000 lbs.
  • 76,500 lbs.
  • 2.90 PSI
  • 5.95 PSI
  • Make/Model
  • Emissions
  • Horsepower
  • Electrical System
  • Fuel Tank Capacity
  • Cummins QSB 6.7
  • Tier 4F
  • 275 @ 2200 RPM
  • 12 V
  • 100 US Gal
  • Type
  • Location
  • Pump Drive
  • Pumps
  • Motors
  • Planetaries
  • Maximum Speed
  • Drive Sprockets
  • Idler Wheel
  • Hydrostatic
  • Front or Rear
  • FUNK 28000 Series
  • Sauer 90 Series
  • Sauer H1B, 2 Speed
  • Fairfield W12
  • 8 MPH
  • Qty. 4, Cast Steel Segments
  • Single, Cast Steel
  • Type
  • Load Wheels
  • Track Roller Guides
  • Heavy Duty Arched Walking Beams - Solid Steel, Urethane Bushings
  • 26" Cast Steel Wheels
  • Qty. 3, Cast Steel
  • Type
  • Width
  • Tensioning System
  • Solid Rubber With Steel Inserts
  • 35.5"
  • Automatic
  • Type
  • Heater
  • Air Conditioning
  • Other
  • Single person enclosed ROPS, 80,000 lbs.
  • 44,000 BTU With Adjustable Defrosters
  • Available
  • Escape Hatch, One (1) Seat With Seatbelt, Dome light, Panel Lights
  • Cold Weather Package
  • Multi-Person Cabin
  • Front Winch
  • Back-up Camera
  • Brush/Window Guards
  • Other Items Available Upon Request
